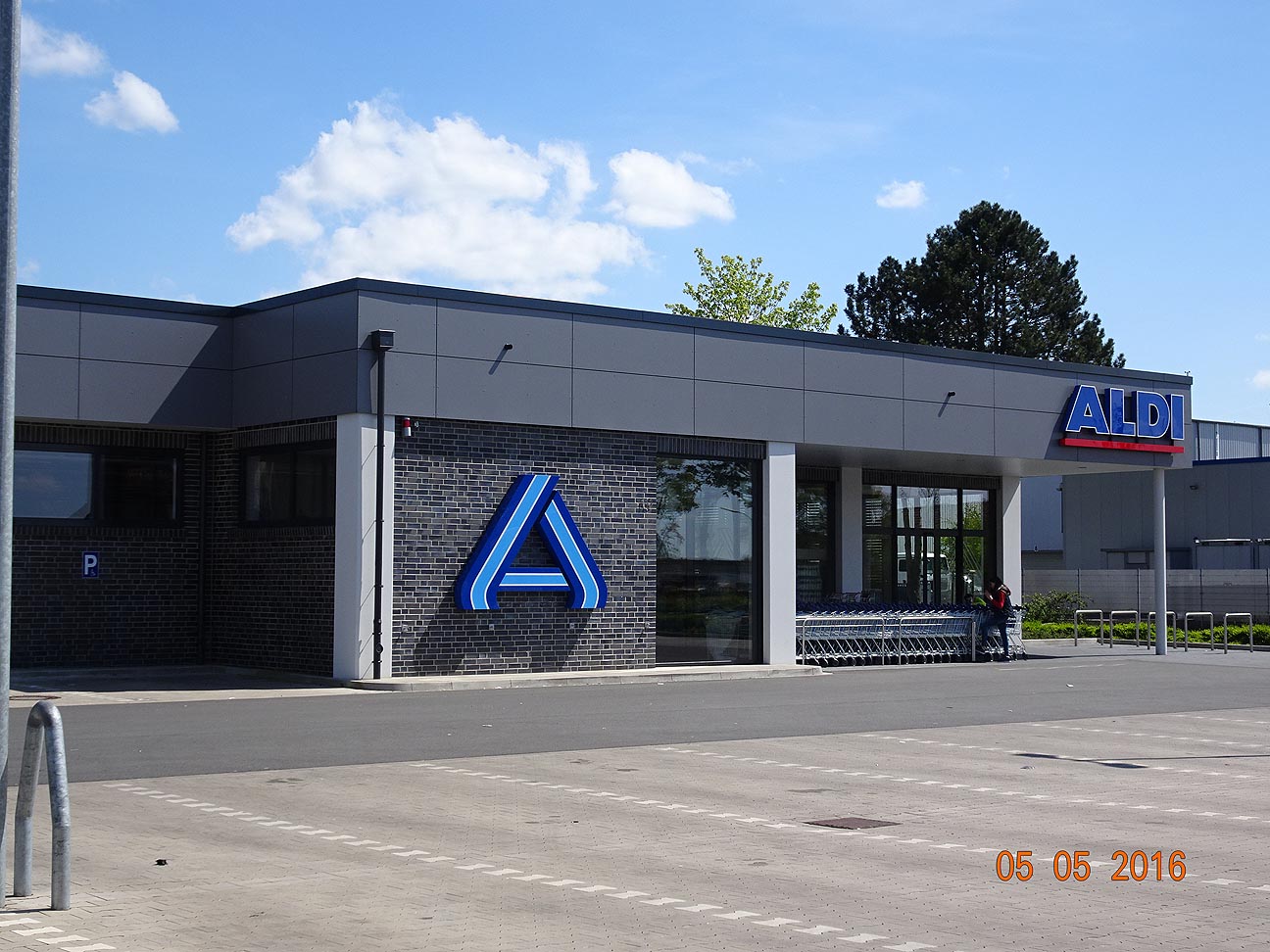

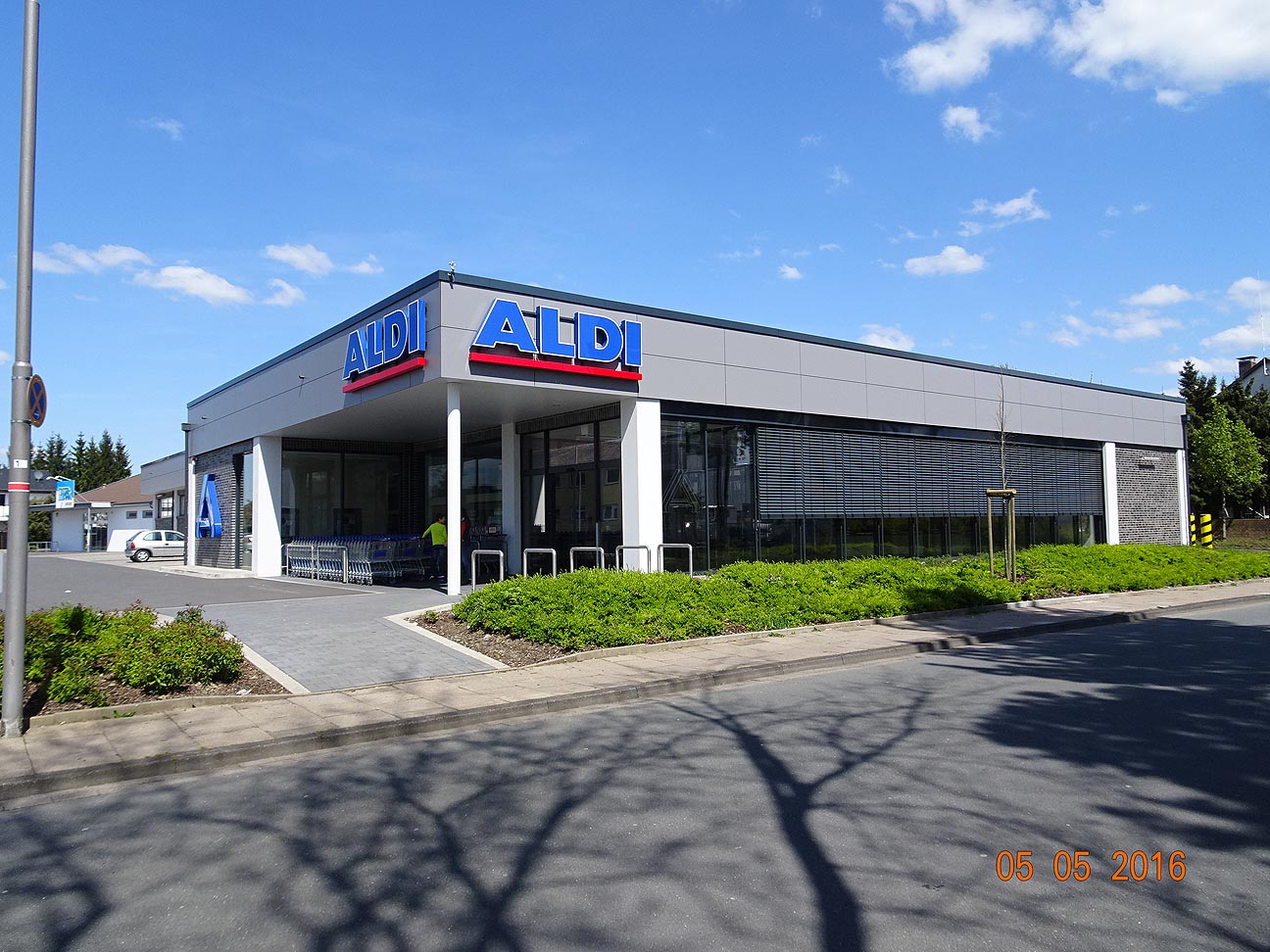

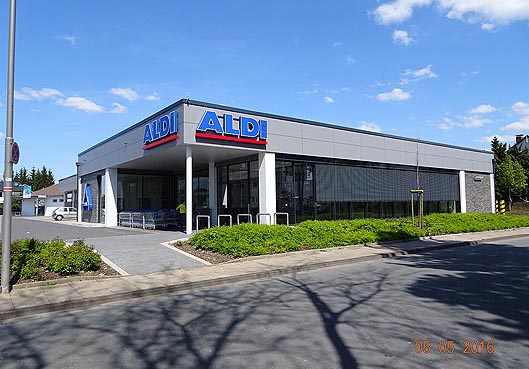

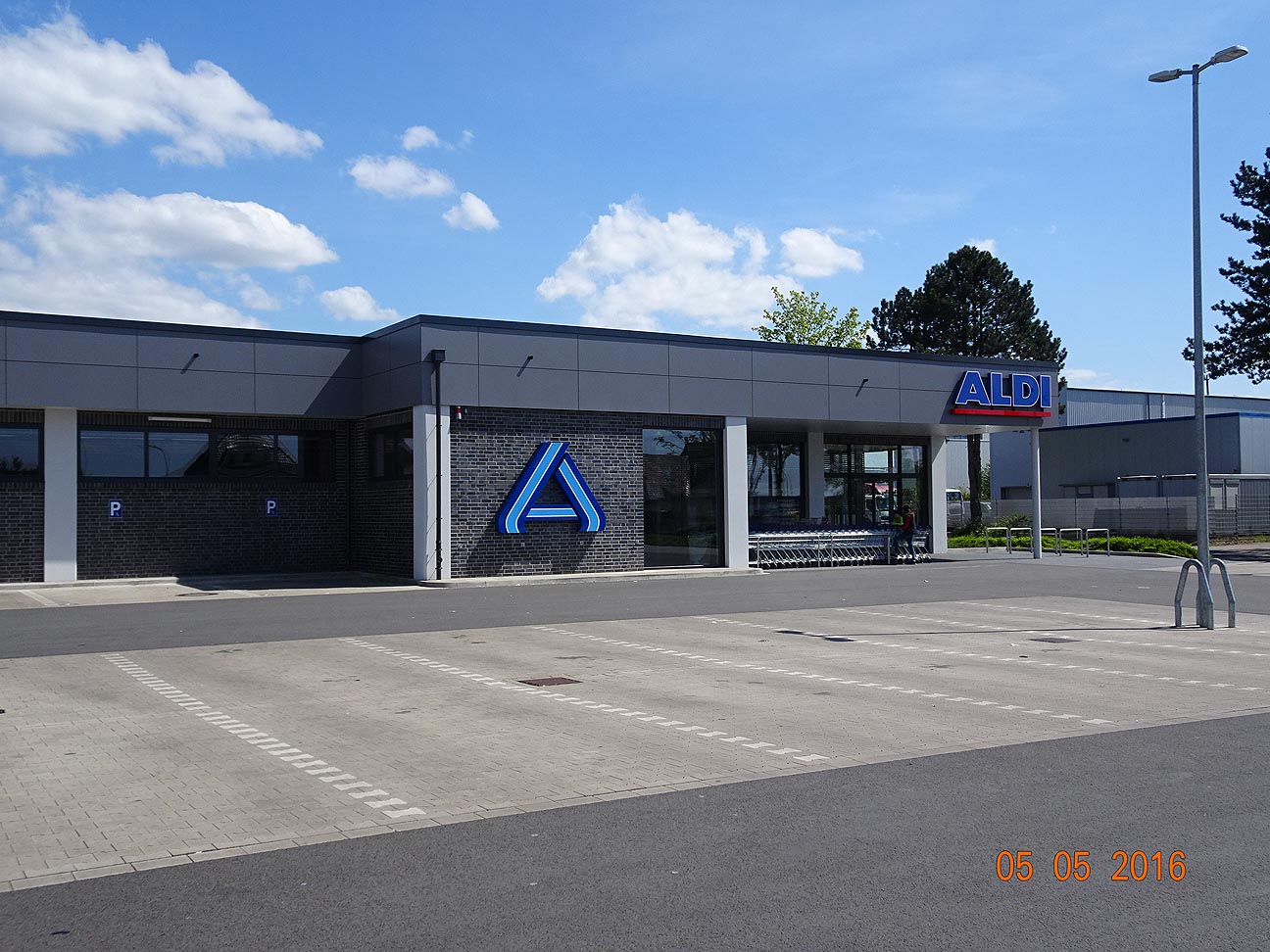

Construction of an ALDI market in Herford, Lockhauser Straße 113

1-storey building with flat roof without basement.

Construction as a steel concrete skeleton with reinforced concrete supports and prestressed concrete beams as a supporting structure for the roof construction consisting of steel trapezoidal sheets with mineral wool insulation and foil lining. The floor consists of a concrete slab with underlying insulation and tile lining in a shaking concrete process.
The exterior walls are bricked and partially finished with ventilated brickwork, the attic is covered with ventilated large-format Trespa facade panels.
The shop window system consists of an insulated aluminum post-transom construction with heat protection glazing and external sun protection.

The old ALDI building on the property was demolished, while the outer ramp has been preserved and integrated into the new building.
The new building reflects the modern appearance of ALDI markets, taking into account the latest energy knowledge.
